Undertile Heating Mat - FEP

Name:	Undertile Heating Mat - FEP
Brand:	FEELWARM
Model No.:	FW-FUTHM
Input Voltage & Power:	AC230V 50/60Hz, 100 / 150 / 200W/Sqm (Or Others)
Mat Size:	1.0 to 12.0Sqm (W0.5m x L2-24m)
Cable Construction:	Twin Conductor, Fully Earthing
Cable Insulation:	FEP (-80℃/+205℃)
Cable Jacket:	FEP (-80℃/+205℃)
Cable Thickness:	Φ2.0mm (Oval)
Cable Spacing:	80mm (100W/Sqm - 100mm)
Cable Reinforcement:	Sticky Fiberglass Mesh
Cold Tail:	3-wire or 2-wire with earth braid, 2.5/3.0m length
Certification:	CE, RoHS, SAA, UL, GS, EAC
Warranty:	25 Years against Manufacture Defects

Product Name & Model:

Electric Under Tile Heating Mat

Twin Conductor, Slim FEP Type (2.0mm Thickness)

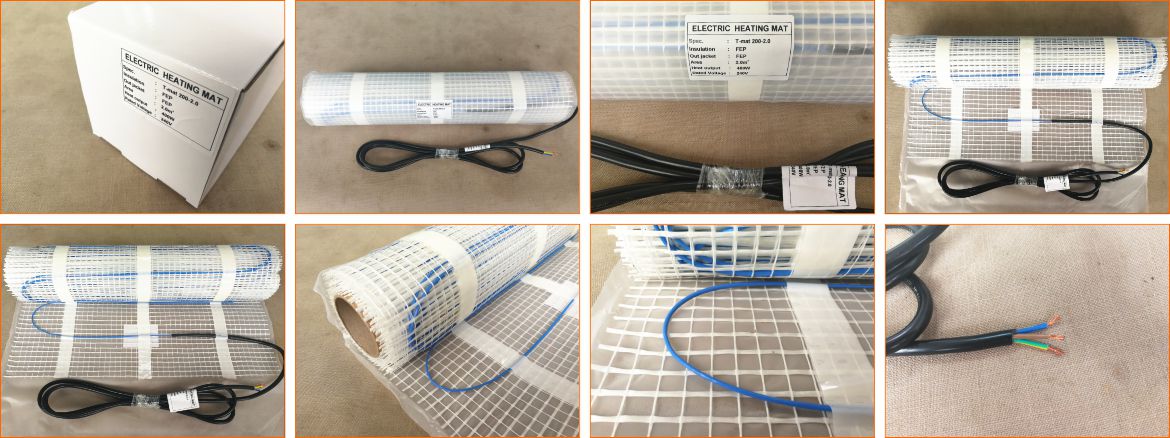

Product Description & Pictures:

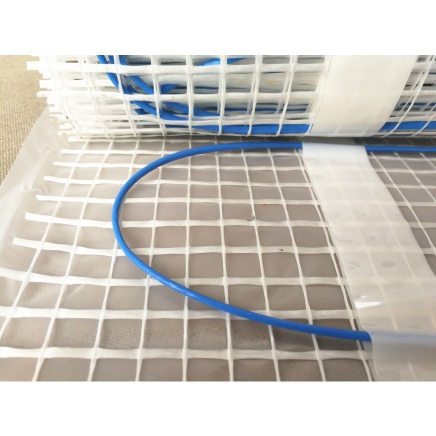

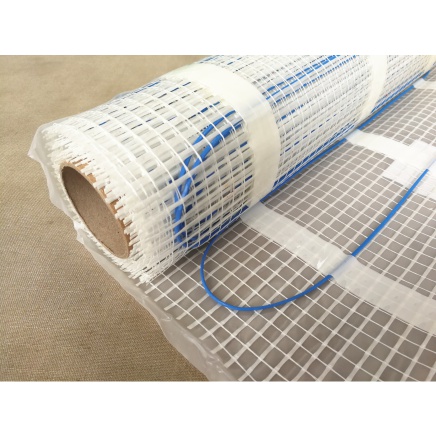

FEELWARM under tile heating system is a fantastic investment in your room's comfort adding a luxurious feel to the floors. Such system is a series of 0.5M wide electric under tile heating mats which can be installed under the floor covering including tiles, porcelain, stone, carpet, laminate, solid wood and vinyl.

FEELWARM under tile heating mats get the pressure sensitive adhesive on the entire fiberglass mesh, allowing for a simple and speedy set-up, thus they can be combined and patch-worked into the room to customized the coverage. Our heating mats are specifically ideal for time-restricted environments such as residential multi-housing and commercial units.

Mat Sizes & Specifications:

100W/sqm Slim FEP Under Tile Heating Mat

140W/sqm Slim FEP Under Tile Heating Mat

150W/sqm Slim FEP Under Tile Heating Mat

160W/sqm Slim FEP Under Tile Heating Mat

200W/sqm Slim FEP Under Tile Heating Mat

Note: Other unconventional power rate and sizes can be customized.

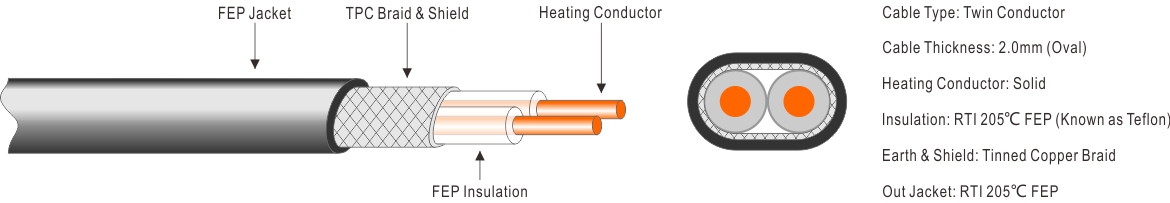

Heating Cable Construction:

Note: Standard Version VS. Slim (Ultra-thin) Version

Available Cold Tail (Power Lead):

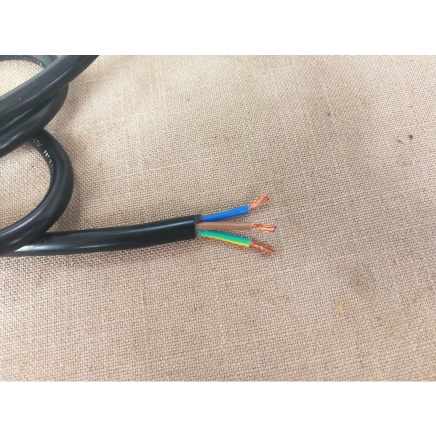

3 wire (copper) cold tail (round), or 2 wire (copper) with earth braid (tinned copper) cold tail (oval).

Note: More Info of Cold Tail

Advantages:

1. Ultra-thin thickness ensures minimum floor height.

2. Twin conductor design with only one connection lead and earth shield integrated, allow easy wiring and safe operation in wet area.

3. Mat with adhesive fiberglass mesh, secures installation with no raise of cable or mesh while tiling.

4. Mat with pre-spaced heating cable and simple cut & turn design, provides simple, speedy and DIY installation and uniform heat output.

5. A large range of standard sizes which can be mixed and matched, fits the caculated floor coverage with minimum number of mats.

6. Other merits, include 100% efficient at converting electricity into heat, low initial installation fee and ongoing running costs, long lifetime, free of maintenance, suitable for nearly any type of floor covering etc.

Applications & Installations:

1. Consider the thermal insulation level of the subfloor and caculate the free floor area (FFA), then select the correct output rating and sized mat/s.

2. Ensure the subfloor soild, level and free from debris & dust. (A wooden subfloor should be reinforced with tile backer boards to be suitable for tiling.)

3. Prime the subfloor with a primer compatible with the levelling compound or tile adhesive and leave primed primer dry.

4. Test your mat/s with a multimeter or ohm meter. (Live to netural = ohms value as in above table, live to = infinity).

5. Lay out the mat/s, cut & turn, tape the loose heating cable (if have), avoid the area with permanent fittings (if have), and test the mat/s' resistance.

6. Connect cold tail, install floor sensor (supplied with thermostat), install thermostat, and test the mat/s' resistance.

7. Cover the mat/s with thinset, tile adhesive, latex screed (5-6mm) for tile, stone, porcelain, or levelling compound (8-15mm) for carpet, vinyl, laminate/solid wood, ensure heating elements, cable joint and sensor probe wire are all encapsulated within adhesive or compound, test the mat/s' resistance.

8. Install floor covering, test the mat/s' resistance, run your heating system after all adhesives or compounds are dry.

Cautions:

1. If you are unsure our mats are suitable for your floor, please consult your floor covering manufacturer or call FEELWARM's helpline.

2. Do not cut, shorten, strain, cross the heating cables or apply the cables with staples in any circumstance. Aviod nailing through the cables and aviod installation under permanent fixtures and fittings such as refrigerator, cabinet, tub, vanity unit, toilet, sink etc.

3. FEELWARM mats are designed for primary heating provided the subfloor is properly insulated. If our mats are being installed onto the subfloor with a low thermal insulation level or without thermal insulation e.g. concrete slab, it is highly recommended that a layer of FEELWARM Insulation Boards (or Tile Backer Boards) are used prior to the installation of the heating mat in order to provide additional insulation.

4. FEELWARM mats must always be controlled by suitable thermostat with floor temperature limitation. FEELWARM thermostats are rated to 16Amps, if the total load from a combination of heating mats exceeds this, a suitably rated contactor should be used. The circuit must be protected by a RCD (30mA and upto 4.8KW) and suitably rated fuse spur or circuit breaker. Multiple mats should be wired in parallel, not in series, and a connection box will be required. All works must comply with current IEE wiring regulations and the installation must comply with Part P of the Building Regulations. All electrical works must be carried out by a certified electrician.
